中空玻璃自動打膠機的操作調試要注意什么？

時間：2023-11-20 來源：http://yfcha.com/ 發布人：昌盛機械

打開氣泵開關，電源總開關，控制臺開關，在控制臺按手動按鈕，然后在顯示屏上找到原點設定，點擊輔助原點設定，然后點擊頭部原點設定，注意原點設定時避免頭部和輔助吸盤碰撞。等設定好然后返回找到玻璃厚度設定，先是玻璃的厚度然后是鋁隔條然后還是玻璃的厚度，輸入完以后，點擊設置進入。等命令位置和當前位置數值一致即可，注意設置時傳送帶上不要有玻璃。

Turn on the air pump switch, main power switch, and console switch. Press the manual button on the console, then find the origin setting on the display screen, click on the auxiliary origin setting, and then click on the head origin setting. Pay attention to avoiding collisions between the head and the auxiliary suction cup when setting the origin. Wait for the settings to be completed and then return to find the glass thickness settings. First, the thickness of the glass, then the aluminum spacer, and then the thickness of the glass. After entering, click on the settings to enter. Wait until the command position matches the current position value, and be careful not to have glass on the conveyor belt during setting.

然后是混交了，按第一桶膠按鈕，按工作選擇按鈕，然后按拍膠啟動，在按伐開，此時膠頭以出膠，等看不見白膠，以混均勻以后按伐關，在按鏈接生產線，自動，自動運行，此時可以自動打膠。

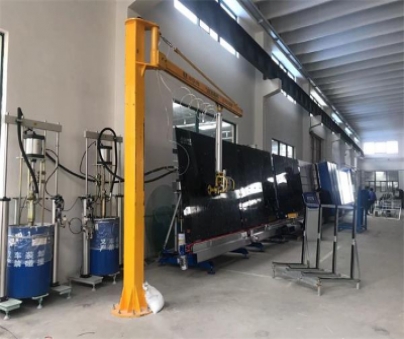

中空玻璃加工設備

Then there is mixing, press the first barrel glue button, press the work selection button, and then press the tapping glue to start. At this time, the glue head will release the glue. When the white glue is not visible, mix evenly and then press the tapping off button. Press the link to the production line, and the automatic and automatic operation will start. At this time, the glue can be automatically applied.

開始打膠要看每條邊每個角打膠是否均勻，下面說下如何調整打膠機，在屏幕上點擊返回找到密封配方，點擊進入，會顯示當前密封壓力，如果每條邊都缺膠，那么可增加壓力，壓力大膠量大，壓力小膠量就小。

To start gluing, it is necessary to check whether the gluing is evenly applied on each edge and corner. Below is how to adjust the gluing machine. Click on the screen to return and find the sealing formula. Click on the enter button to display the current sealing pressure. If each edge is missing glue, the pressure can be increased. If the pressure is high, the amount of glue will be high, but if the pressure is low, the amount of glue will be low.

下面說下針對某條邊，或某個交，膠量不夠的調試方法。在點擊密封配方進入后會顯示有向上密封，上部密封，向下密封，和下部密封，開始打膠的那條邊就是向上密封，然后順序從上。

Below is a debugging method for insufficient adhesive amount on a certain edge or intersection. After clicking on the sealing formula to enter, it will display up sealing, upper sealing, down sealing, and lower sealing. The edge where the glue starts is up sealing, and then the sequence starts from top.

如果先打膠的這條邊，打膠不均勻，那么點擊向上密封，進入后顯示。掃描器開后發開的時間，就是在膠嘴貼到玻璃開始移動膠嘴出膠的時間，時間長出膠晚，時間短出膠早，掃描器開后開始移動的時間，就是膠嘴移動的速度，時間長移動慢，出膠多，時間短移動快出膠少。

If the edge where the glue is applied first is not evenly applied, click on "Seal Up" to enter the display. The time when the scanner is turned on is the time when the glue nozzle starts to move and release glue when it is pressed onto the glass. If the time is long, the glue will be released later, and if the time is short, the glue will be released earlier. The time when the scanner starts to move after turning on is the speed at which the glue nozzle moves. If the time is long, the movement will be slow, and the glue will be released more. If the time is short, the movement will be faster, and the glue will be released less.

掃描膠量細微調整，就是只有某條邊膠少，或多，時調整掃描膠量細微調整，數值大膠量就大，數值小膠量就小。然后說下到末端伐關的距離，數值大，膠嘴到末端膠量少，數值小膠量大。

Fine adjustment of the scanning adhesive amount refers to adjusting the scanning adhesive amount when there is only a certain edge with less or more adhesive. If the numerical value is large, the adhesive amount will increase, and if the numerical value is small, the adhesive amount will decrease. Then, let's talk about the distance from the end of the gate. The numerical value is large, but the amount of glue from the nozzle to the end is small, and the numerical value is small, but the amount of glue is large.

本文由中空玻璃加工設備友情奉獻.更多有關的知識請點擊:http://yfcha.com真誠的態度.為您提供為全面的服務.更多有關的知識我們將會陸續向大家奉獻.敬請期待.

This article is dedicated to the friendship of insulating glass processing equipment. For more relevant knowledge, please click on: http://yfcha.com Sincere attitude. We will provide you with comprehensive services. We will gradually contribute more relevant knowledge to everyone. Stay tuned
