中空玻璃生產線在玻璃生產中發揮重要作用!

時間：2023-11-15 來源：http://yfcha.com/ 發布人：昌盛機械

玻璃擁有良好的透過、透光性能，化學穩定性較高，并且可以根據加工方法不同而獲得較強的機械強度與保溫隔熱效果，因此能夠用于各行各業，滿足不同的需求。加工玻璃需要使用到各式各樣的玻璃生產設備，將玻璃原片加工成各種各樣的玻璃成品，滿足大家的需求。接下來我們將介紹玻璃生產常用設備，并特別說明中空玻璃生產線。

Glass has good transparency and light transmission properties, high chemical stability, and can achieve strong mechanical strength and insulation effects according to different processing methods. Therefore, it can be used in various industries to meet different needs. Processing glass requires the use of various glass production equipment, which processes glass raw materials into various glass products to meet everyone's needs. Next, we will introduce the commonly used equipment for glass production, and specifically explain the hollow glass production line.

一、中空玻璃生產線中空玻璃生產線是玻璃深加工設備的一種,主要用來加工制作中空玻璃,玻璃原片切割后進入中空生產線

1、 The insulating glass production line is a type of glass deep processing equipment mainly used for processing and making insulating glass. After the glass raw material is cut, it enters the insulating production line

主要經過清洗、干燥、制作間隔框、充干燥劑、首道密封(涂丁基膠)、檢查、放框合片、壓片、第二道密封(聚硫膠或硅酮膠)、下片,這幾道工序

The main processes include cleaning, drying, making spacer frames, filling with desiccant, first sealing (applying butyl adhesive), inspection, placing frames and laminating, pressing, second sealing (polysulfide or silicone adhesive), and unloading

加工出來的產品質量較高,加工速度很快.

The processed product has high quality and fast processing speed

中空玻璃生產線主要有四段:入料段、清洗干燥段、檢查段和合片段.四段均以相同的傾角立式安放,結構緊湊、經濟實用、效率高、維護方便.清洗箱為不銹鋼材料制造,傳送輥為耐酸堿橡膠輥;通過農業生產體系玻璃視窗可隨時方便地觀察玻璃清洗情況;入料段、清洗干燥段采用手動無級調速電機傳動,玻璃以合適的速度平穩地運行.干燥段采用大風力傾斜風刀能使玻璃表面得以干燥.檢查段設有燈管,能清晰地檢查玻璃的清洗質量;合片段具有玻璃定位及鋁框定位裝置,能完成玻璃定位、鋁框定位安放功能.玻璃由傳送膠輥承托及傳送,傳送輥由電機(輥壓段電機)經過變頻調速器通過鏈輪帶動,玻璃由清洗干燥段低速進入本段,經檢查合格后加速運行至下一工作段,提高工作效率;由變頻調速器控制本段調速電機的運行速度,光電開關控制玻璃進入下一工作段.

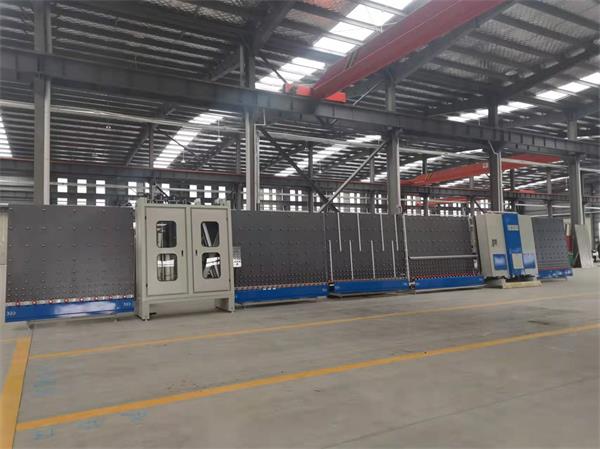

中空玻璃生產線

The insulating glass production line mainly consists of four sections: feeding section, cleaning and drying section, inspection section, and assembly section. All four sections are vertically arranged at the same inclination angle, with a compact structure, economy and practicality, high efficiency, and easy maintenance. The cleaning box is made of stainless steel material, and the conveying roller is acid and alkali resistant rubber roller; The glass cleaning situation can be easily observed through the agricultural production system glass window at any time; The feeding section and the cleaning and drying section are driven by manual stepless speed control motors, and the glass runs smoothly at an appropriate speed. The drying section uses a strong wind inclined blade to dry the glass surface. The inspection section is equipped with a lamp tube, which can clearly check the cleaning quality of the glass; The composite segment has glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning. The glass is supported and transported by conveyor rollers, which are driven by a motor (roller pressing section motor) through a frequency converter and a sprocket. The glass enters this section at low speed from the cleaning and drying section, and after passing the inspection, accelerates to the next working section, improving work efficiency; The frequency converter controls the running speed of the speed regulating motor in this section, and the photoelectric switch controls the glass to enter the next working section

中空玻璃生產線的清洗水路系統為循環系統,其水箱配有恒溫水加熱裝置,水溫可自動保持在合理的范圍.

The cleaning water system of the insulating glass production line is a circulating system, and its water tank is equipped with a constant temperature water heating device, which can automatically maintain the water temperature within a reasonable range

水由水泵從水箱抽出,經噴淋水管噴到玻璃表面上,清洗玻璃后流回水箱,循環使用.若水質較差,需配備水處理裝置(用戶自備),水經處理后進入水箱,按上述步驟循環使用.

Water is pumped out of the water tank by a water pump and sprayed onto the glass surface through a spray pipe. After cleaning the glass, it flows back to the water tank for recycling. If the water quality is poor, a water treatment device (provided by the user) is required. After treatment, the water enters the water tank and is recycled according to the above steps

風路系統:由風機通過一對傾斜風刀,吹干玻璃.

Air duct system: The glass is blown dry by a fan through a pair of inclined blades

調試方法

Debugging method

1.1 將中空玻璃生產線輕置于安裝位,正確擺放生產線各段的位置次序.

1.1 Place the insulating glass production line gently in the installation position and correctly place the position order of each section of the production line

1.2 機身調平.調整機器底座上調平螺栓高度,使傳送輥、支撐尼龍輪支撐面等高,斜架上的背靠輪共面,各段相對平行,然后鎖緊螺母.

1.2 Machine body leveling. Adjust the height of the leveling bolts on the machine base to ensure that the conveyor roller and supporting nylon wheel support surface are at the same height, and the back wheels on the inclined frame are coplanar, with each section relatively parallel. Then, tighten the nuts

1.3 將各段間需聯接的部位聯接緊固,聯接好由入料段到清洗干燥段的傳動鏈條.正確擺放風機及水箱,并按水路、風路系統圖接好風管、水管.

1.3 Connect and tighten the parts that need to be connected between each section, connect the transmission chain from the feeding section to the cleaning and drying section, correctly place the fan and water tank, and connect the air duct and water pipe according to the water and air duct system diagram

1.4 一體檢查機器所有緊固件連接處是否因運輸震動而松動,并逐件緊固(特別是各接線端子連接處是否松動).

1.4 Inspect all fasteners of the machine for looseness due to transportation vibration, and tighten them one by one (especially whether the connections of each wiring terminal are loose)

1.5 接地線用截面積不小于4平方毫米的軟銅心黃綠絕緣線,接地電阻不大于4 歐姆.

1.5 The grounding wire shall be made of soft copper core yellow green insulated wire with a cross-sectional area of not less than 4 square millimeters, and the grounding resistance shall not exceed 4 ohms

1.6 接通氣源,檢查管路是否通暢,有無破損.氣源壓力要求0.6~0.8Mpa.

1.6 Connect the air source and check if the pipeline is unobstructed and undamaged. The air source pressure requirement is 0.6~0.8Mpa

1.7 接通電源,試驗各電機的旋轉方向是否正確,各段傳動鏈輪是否靈活、平穩.

1.7 Connect the power supply and test whether the rotation direction of each motor is correct, and whether the transmission sprockets of each section are flexible and stable

1.8 整機清潔,整理工作區間.

1.8 Clean the entire machine and organize the work area

本文由中空玻璃生產線友情奉獻.更多有關的知識請點擊: http://yfcha.com真誠的態度.為您提供為全面的服務.更多有關的知識我們將會陸續向大家奉獻.敬請期待.

This article is a friendly contribution from the insulating glass production line. For more relevant knowledge, please click on: http://yfcha.com Sincere attitude. We will provide you with comprehensive services. We will gradually contribute more relevant knowledge to everyone. Stay tuned
