中空玻璃生產線功能特點:
Features:
1、高生產效率,可靠的自動化:
1. High productivity, reliable automation:
本機全過程由PLC控制,采用觸摸式人機界面(7寸)操作,操作人員只需將玻璃放于入料段,生產線各部動。清洗傳送采用變頻器驅動，實現傳送無極調速。傳送速度可達12/min。每小時可清洗玻璃200片，每天可清洗玻璃1600片。
The whole process of the machine is controlled by PLC, and the touch type human-machine interface (7-inch) is used for operation. The operator only needs to put the glass in the feeding section, and each part of the production line moves. The cleaning transmission is driven by a frequency converter to realize the stepless speed regulation of transmission. The transmission speed can reach 12/min. It can clean 200 pieces of glass every hour and 1600 pieces of glass every day.
2、自動啟動、自動待機、停機功能，實現電能的有效節約，當有玻璃進入生產線后，清洗傳送、水泵毛刷、風機、檢查燈、檢查傳送、覆片傳送、玻璃定位、平壓傳送、平壓程序執行、翻轉臺傳送、玻璃翻轉等均按照玻璃所到位置自動啟動，當在設定時間內無工作要求時，以上工作狀態部位將依次逐步停機，處于待機狀態，當有工作要求時會自動執行以上程序。
2. The functions of automatic start, automatic standby, and shutdown can effectively save electric energy. When glass enters the production line, the cleaning and transmission, water pump brushes, fans, inspection lights, inspection and transmission, coating transmission, glass positioning, flat pressing transmission, flat pressing program execution, turntable transmission, and glass overturning will automatically start according to the position of the glass. When there is no working requirement within the set time, The parts under the above working conditions will be shut down step by step, and will be in standby mode. When there is a working requirement, the above procedures will be automatically executed.
3、清洗傳送機構上置功能，防止設備運行過程漏水：
3. Clean the upper function of the transmission mechanism to prevent water leakage during equipment operation:
為避免設備在使用過程中出現漏水情況，本公司將清洗傳送機構移到清洗室頂部，徹底解決了清洗室底部開孔密封漏水問題。
In order to avoid water leakage during the use of the equipment, the company moved the cleaning conveyor to the top of the cleaning room, which completely solved the problem of water leakage of the opening seal at the bottom of the cleaning room.
4、風干室托輪傳送功能，避免因遺留夾痕造成廢品：
4. Air drying room supporting wheel transmission function, to avoid waste products caused by left pinch marks:
傳統結構為采用多道輥輪夾緊方式驅動玻璃離開干燥室,容易使玻璃表面出現夾痕,本公司采用拖輪機構,使玻璃邊沿在傳送機構上傳送,無夾痕.
The traditional structure is to drive the glass out of the drying chamber by means of multi track roller clamping, which is easy to cause pinch marks on the glass surface. The company uses a tugboat mechanism to make the glass edge transfer on the transfer mechanism without pinch marks
5、玻璃清潔度檢查功能：
5. Glass cleanliness inspection function:
通過深灰色背景與白色日光燈的結合，方便玻璃表面的清潔度檢查。
The combination of dark gray background and white fluorescent lamp facilitates the cleanliness inspection of glass surface.
6、玻璃高度自動測量系統：
6. Automatic glass height measurement system:
合片機上的橫梁配有特殊裝置，始終停在玻璃上方10cm的位置，不用每次都上下往返一次，大大提高了合片速度。合片機上的第二片玻璃定位精確，無需人工手推輔助定位，真正實現自動合片。
The beam on the film combining machine is equipped with a special device, which always stops at the position 10cm above the glass, instead of going up and down once every time, greatly improving the film combining speed. The second piece of glass on the laminating machine is positioned accurately, without manual pushing for auxiliary positioning, which truly realizes automatic laminating.

7、合理的鋁條定位設計
7. Reasonable aluminum bar positioning design
在檢查輸送機的末端開始安放鋁條，使得自動合片動作能夠一氣合成。并且在合片機上的玻璃自動合片動作尚未結束時，后面的玻璃已經開始安放鋁條，大大減少了每片玻璃的平均生產時間，提高了生產率。
The aluminum strip is placed at the end of the inspection conveyor, so that the automatic laminating action can be combined in one gas. In addition, before the automatic glass laminating action on the laminating machine is over, aluminum bars have been placed on the rear glass, greatly reducing the average production time of each piece of glass and improving the productivity.
8、合片段自動玻璃定位、鋁框定位功能：
8. Automatic glass positioning and aluminum frame positioning of the combined segment:
第二片玻璃進入覆片段后，玻璃定鋁框定位自動執行。
After the second piece of glass enters the covering segment, the positioning of the glass aluminum fixing frame is automatically executed.
9、平壓程序自動執行功能，實現中空玻璃的完美壓合：
9. Automatic execution of flat pressing program to achieve perfect pressing of insulating glass:
采用氣壓控制氣缸作為平壓機的壓合動力，聯動四根平行拉桿具有運行平穩、響應速度快、精確定位功能，輕松實現中空玻璃的完美壓合。通過主控制人機界面進行操作，平壓機活動平板在氣缸的帶動下精確定位至中空玻璃實際工藝值進行工作?？朔似胀ㄆ綁簷C(jī)因壓力大小壓合不到位，影響成品玻璃質量：或者壓合過度，致使玻璃破損等缺點。
The air pressure control cylinder is used as the pressing power of the flat press, and the linkage of four parallel pull rods has the functions of stable operation, fast response and accurate positioning, which can easily realize the perfect pressing of insulating glass. The operation is carried out through the main control human-machine interface, and the moving plate of the flat press is precisely positioned to the actual process value of the insulating glass under the drive of the cylinder for work. The utility model overcomes the shortcomings of the ordinary flat press that the pressing is not in place due to the pressure, which affects the quality of the finished glass, or that the pressing is excessive, which leads to the breakage of the glass.

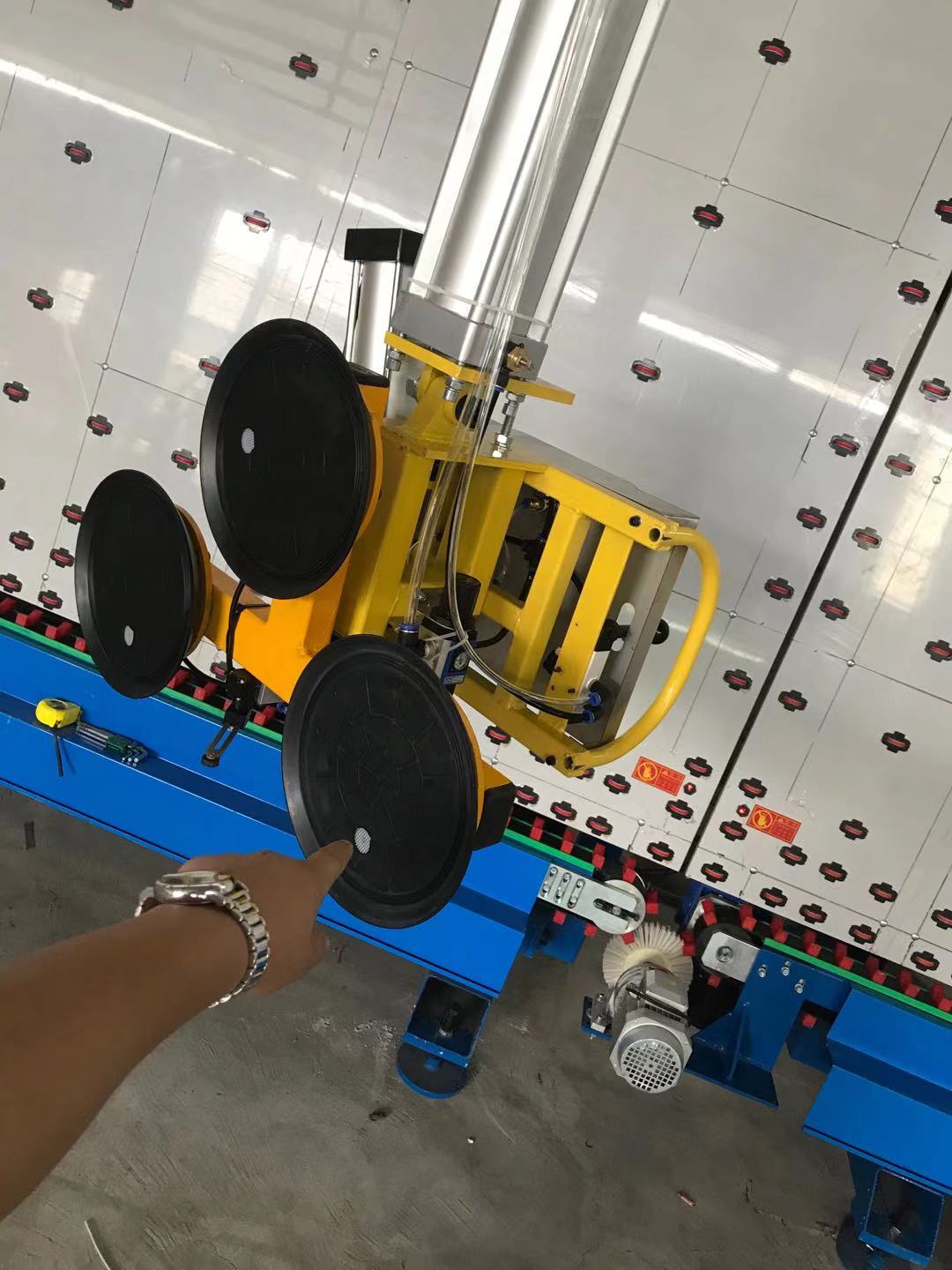

10、全套臺灣真空系統，支持板內合片功能更加完美、可靠。
10. A full set of Taiwan vacuum system makes the function of the support plate inner lamination more perfect and reliable.
11、根據季節變化，自動水、風加熱功能：
11. According to seasonal changes, automatic water and wind heating function:
由于冬季溫度低或在結冰狀態下，無法進行正常生產，本生產線具備在每年9月至次年4月執行水溫自動衡溫加熱功能。
Since normal production cannot be carried out due to low temperature or icing in winter, this production line has the function of automatic temperature balance heating from September to April of the next year.
以上就是為大家介紹的有關中空玻璃生產線詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://yfcha.com
The above is a detailed introduction to the insulating glass production line. I hope it will be helpful to you. If you have any questions, please contact us. We will provide you with our attitude http://yfcha.com
