當前位置：正確認識雙組份打膠機組成部分
時間：2021-11-26 來源：http://yfcha.com/ 發布人：昌盛機械

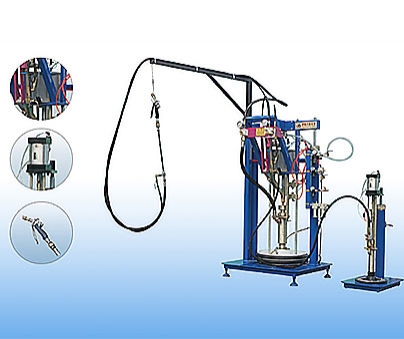

雙組份打膠機由 A、 B型膠泵、氣動系統、升降機構、機架等組成。各點如下：
The two-component coating machine is composed of A, B type glue pump, pneumatic system, lifting mechanism, frame and so on. The points are as follows:
膠泵：
Rubber pump:
A、 B組各設一臺膠泵，在各自的氣馬達帶動下，分別作往復運動，將膠吸出并壓出。B、 A、 B分別固定在壓膠盤上，然后與機架連接形成各自的系統。
A, B group each set a rubber pump, driven by their own gas motor, respectively, the reciprocating movement, the rubber out and pressure. B, a, B are respectively fixed on the pressure plate, and then connected with the rack to form their own system.
B組份的比例由比例杠桿調節：向內調節， B排出膠減少，向外調節， B排膠增大。采用比例杠桿控制 B膠出膠量，從而控制 A、 B膠的比例。
The proportion of component B is regulated by proportional lever: Adjusting inwards, reducing the amount of glue discharged from B, adjusting outwards, increasing the amount of glue discharged from B. The proportion of A and B glue is controlled by proportion lever.
出膠：由氣源處理器控制，逆時針調整，出膠量增加，順時針調整出膠量減少。(此處指出膠總量)
Tapping: controlled by air source processor, counter-clockwise adjustment, the amount of tapping increased, clockwise adjustment of the amount of tapping decreased. (the amount of glue indicated here)
該膠泵通過比例杠桿調節 A、 B的膠量比例，具有操作靈活、性能穩定、調節范圍大等特點。
The rubber pump adjusts the proportion of a and B by proportional lever. It has the characteristics of flexible operation, stable performance and large adjustment range.
升降機構：
Lift mechanism:
雙組份打膠機在B組份膠泵分別設置一套氣動提升機構，所述提升機構分別由兩個并聯的氣缸組成，并通過橫梁固定連接各自的泵體。兩缸間的力通過壓盤作用于膠面，壓力大小由調壓閥調節，一般為0.3 MPa左右；第二，在需要更換膠桶時，可通過氣缸將壓盤提起。退出膠桶，以替換新膠桶。
The Component B rubber pump is respectively provided with a set of pneumatic lifting mechanisms which are respectively composed of two parallel air cylinders and fixedly connected with respective pump bodies through crossbeams. The force between the two cylinders acts on the rubber surface through the pressure plate, the pressure is adjusted by the pressure regulating valve, generally about 0.3 MPA. Exit the Pail to replace the new pail.
